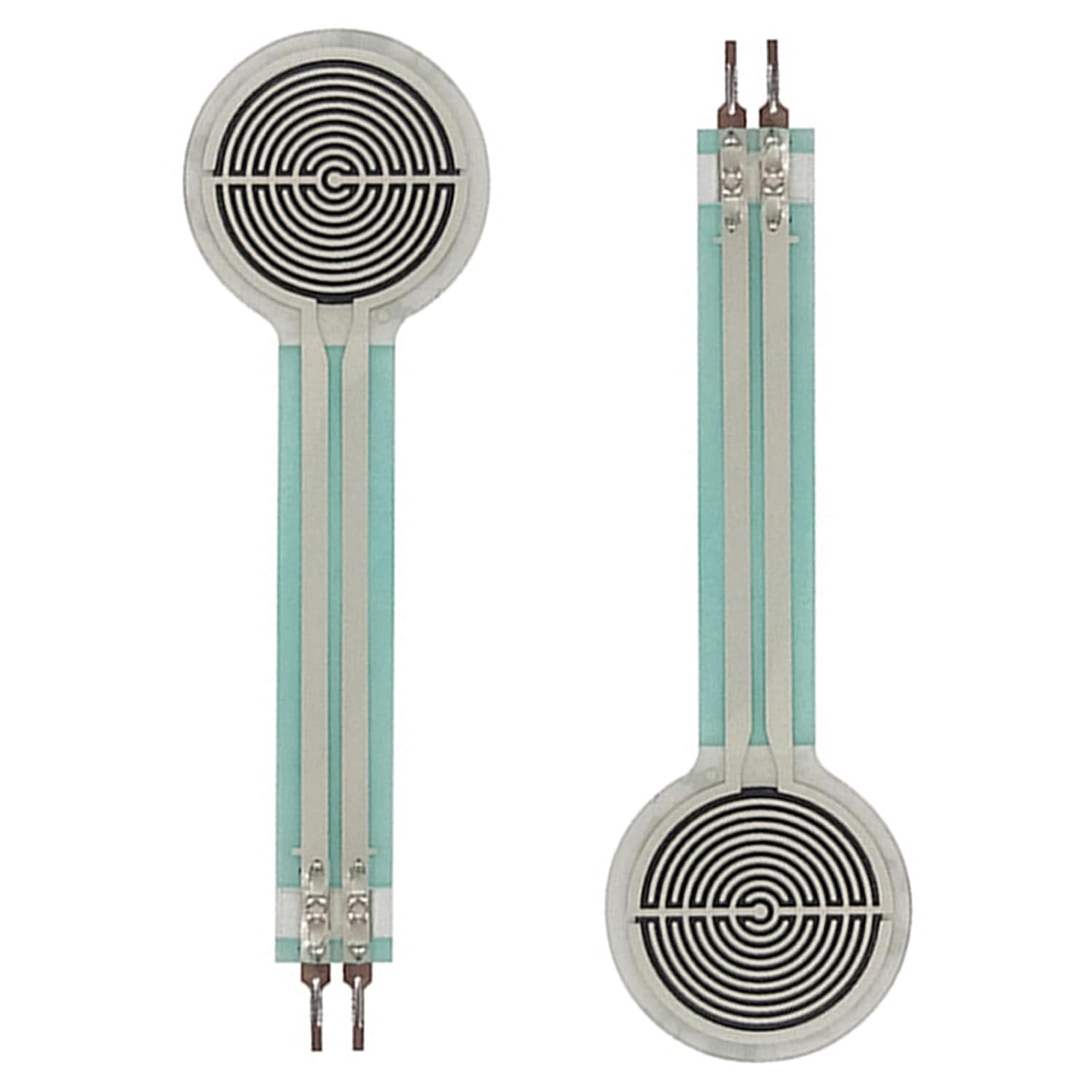

Force Sensing Resistor, Pressure Sensor, 20G-6KG Force Sensor, High Precise Flexible Force Gauge for Home Industry (2 Pack) (RP-C18.3-LT) (RP-C18.3-LT)

Features: 1. RP-C18.3-LT pressure sensor with excellent flexibility and stability 2. With a pressure range of 20gm‑6Kg, it can withstand multiple flexible presses and has a long service life 3. The thin film pressure sensor has excellent force sensitivity, and has a quick response speed and strong practicability 4. Composed of polyester film with excellent performance, highly conductive materials, graphene pressure sensitive materials and bonding materials 5. The output interface is made of wear resistant material, which is conducive to the contact of metal shrapnel or thimble, and it can be directly soldered How to use: When there is no external pressure, the sensor is in an open circuit state, and the resistance is infinite. When the pressure is less than 20g, the sensor enters the trigger state, and the resistance value is less than 200KΩ. When the pressure further increases, the resistance becomes smaller. When the pressure reaches 6Kg, the resistance value is about 0.1KΩ. The output resistance of the pressure-sensing terminal changes with the change of the external pressure. Specification: Item Type: Thin Film Pressure Sensor Thickness: 0.4 mm Style: Flake Trigger Force: 20gm Pressure Range: 20g--6kg When Triggering Force: Resistance<200KΩ Pressure Action Mode: Contact Pressing Resistance When Not Triggered: Greater than 10MΩ Activation Time: Less than 0.01s Operating Temperature: -40℃+85℃ Durability: More than 1 million times (Flexible pressing with 1Kg force) Resistance Range: 0.1K-200KΩ Response Time: <10ms Pressure Action Mode: Static or dynamic (frequency within 10 Hz) Lag: +10%, (RF+ - RF-)/FR+, 1000g force Drifting: <5%, 2.5Kg force static load 24H Weight: 1gm / 0.04oz (approx.) Package List: 2 x Thin Film Pressure Sensor

• Premium Quality: The film pressure sensor is composed of polyester film with excellent performance, highly conductive materials, graphene pressure sensitive materials and bonding materials
• Good Performance: The force-sensing resistor is a passive component that acts as a variable resistor, with resistance decreasing in response to increasing applied force, which makes it easy to add a touch interface to your project or create a robot with much more sophisticated tactile senses than are possible with simple lever switches
• Resistant Conversion: When the force sensor detects external pressure, the resistance of the sensor will change, offering great convenience for detection
• Signal Conversion: The pressure signal of the thin film pressure sensor can be converted into a corresponding electrical signal output through a simple circuit. The higher the pressure, the lower the resistance
• Widely Applications: It can be used in the end gripper of the manipulator to sense the presence or absence of gripping objects, widely used for kitchen appliances, projectors, electronic balances, electronic locks, print devices, office equipments, NC equipments and industry equipments, etc.
